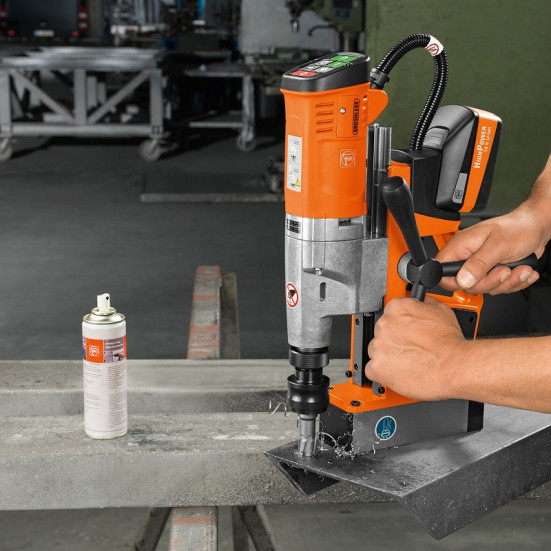

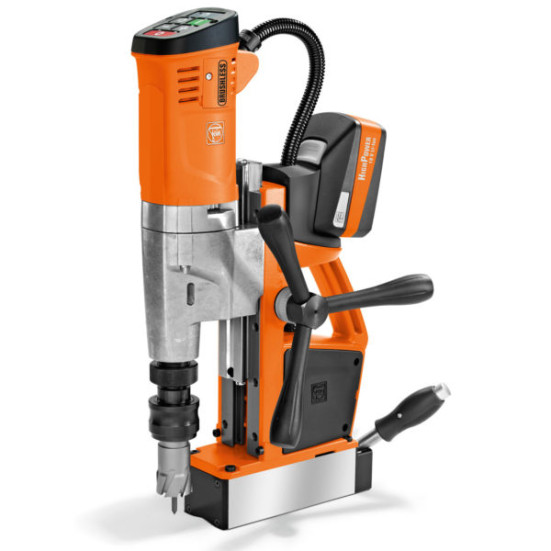

A small and powerful single-speed cordless universal magnetic core drill with forward/reverse running, permanent magnet and maximum functionality for mobile working on the construction site. With its extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades, this handy and light tool produces continuously excellent work progress thanks to brushless FEIN PowerDrive motor with tacho electronics and high powered storage batteries
Features
- Flexibility for all mobile drilling work, such as core drilling, twist drilling, tapping, countersinking and reaming
- Simple operating concept avoids mix-ups and can be clearly seen by the user.
- Convenient magnetic holding force display.
- It has a r eversible electronic speed setting.
- Extra narrow permanent magnet with magnetic bias.
- Speed saving "memory function".

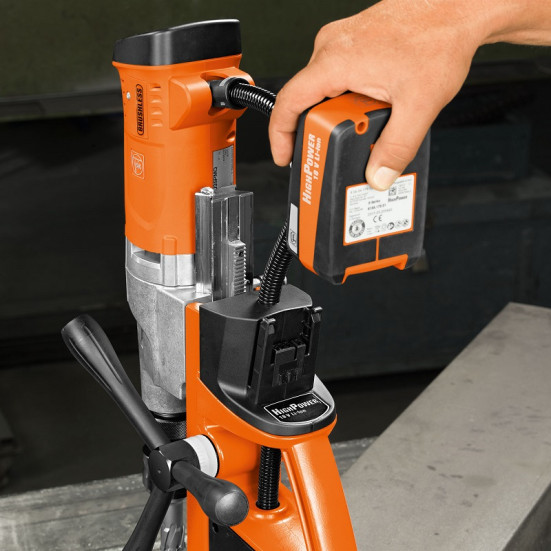

- The battery charge can be read off the battery.
| Specifications | |
| Battery voltage | 18 V |
| Motor | brushless |
| Speed, full load | 130 - 520 rpm |
| Twist drill max | Ø : 18 mm |
| Core drill, drilling depth max. | 50(75)* mm |
| Carbide core drill bit max. diameter | 35 mm |
| HSS core drill max | Ø : 35 mm |
| Changing the core bit | tool-free |
| Stroke | 135 mm |
| Total stroke range | 260 mm |
| Magnetic holding power | 9 000 N |
| Magnetic foot dimensions | 195 x 70 mm |
| Weight without battery | 12,10 kg |
